p80 air cooled cnc plasma cutting torch 1/8G 1/4G

Product Description

P80 plasma

Technical Data

Commodity Name

PLASMA TORCH
Current 80Amps
Duty Cycle 60%
Gas AIR
Gas Pressure 4.5-5.0 Bar
Gas Flow 220LPM
Ignition HF
Post Flow 80sec. recommended
Standard Length 6M

hand torch

Ref. Description
  Plasma torch/P80/6m central adaptor
  Plasma torch/P80/6m 3/8G
  Plasma torch/P80/6m M16*1.5
  Plasma torch/P80/6m 1/4G
  Plasma torch/P80/6m M14*1

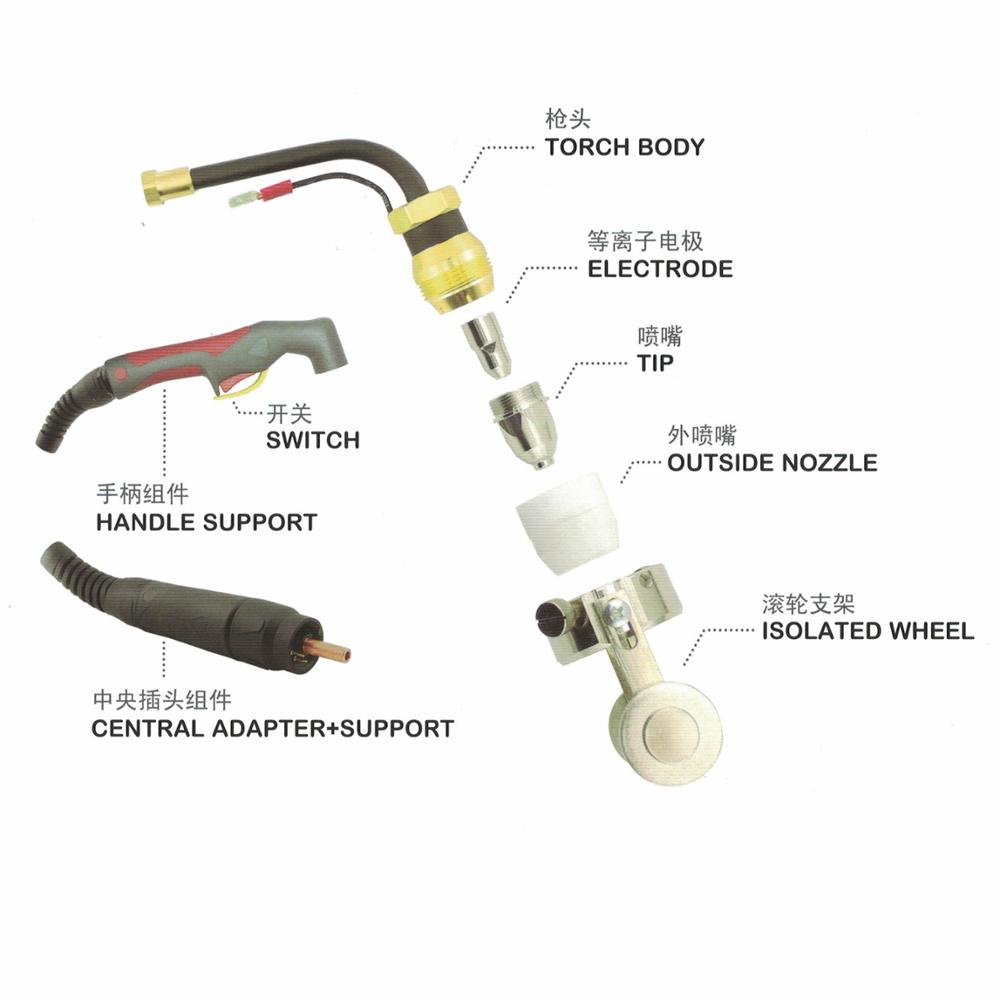

spare parts for plasma torch

Position

Ref.

Description

1



Insulator wheel/P80

2



Ceramic outside nozzle P80

3



Tip

3.1



Tip Φ1.0mm P80

3.2

Tip Φ1.3mm P80

3.3

Tip Φ1.5mm P80

4

Electrode /P80

5

Plasma torch head P80/LIGH

6

Plasma handle manual/A Series/Red

7

Protection part/Plasma/Yellow

8

Trigger

9

Plasma joint/small/mew type

10

Cable assembly

10.1   Cable assembly /P80/6m 3/8G
10.2   Cable assembly /P80/6m 1/4G
10.3   Cable assembly /P80/6m M14*1
10.4   Cable assembly /P80/6m M16*1.5
10.5   Cable assembly /P80/6m central adaptor
11   Connecting adaptor
11.1   Cable assembly /P80/6m 3/8G
11.2   Cable assembly /P80/6m 1/4G
11.3   Cable assembly /P80/6m M14*1
11.4   Cable assembly /P80/6m M16*1.5
12   Spanner for P80
13   Central adaptor torch side Plasma 5 Pins
