Home > Products > MAG/MIG welding torches > BIN type welding gun > CE Binzel new handle type 24KD Mig welding torch

CE Binzel new handle type 24KD Mig welding torch

Product Description

CE Binzel new Handle type 24KD Mig Welding Torch

< TD style="width: 900px; height: 30px; text-align: left; background-color: #ff9900;">Our hot sale products



CE Binzel new handle type 24KD Mig welding torch

Changzhou Tonyweld Co.,Ltd.is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Changzhou tonyweld can produces :
1.MIG/MAG,CO2 :Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard

  300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco 5#,Fronius AW4000,AW5000,AL3000,AL4000,   Saf welding torch and gas Nozzle ,Contact Tip,contact Tip Holder, Swan Neck ,Gas Diffuser liner etc.

2.Tig : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P)  , Collet ,Collet Body, Gas Lens ,Ceramic Nozzle,aluminal nozzle,long/mediu/short cap etc.
3.Air plasma cutting :P80,P160, PT31 ,AG60,SG55, JG60 , JG100 ,Trafimet serise cutting torches, torch head            ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,Earth Clamp
5.welding helmet,electorde holder
6.Tungsten Electrode

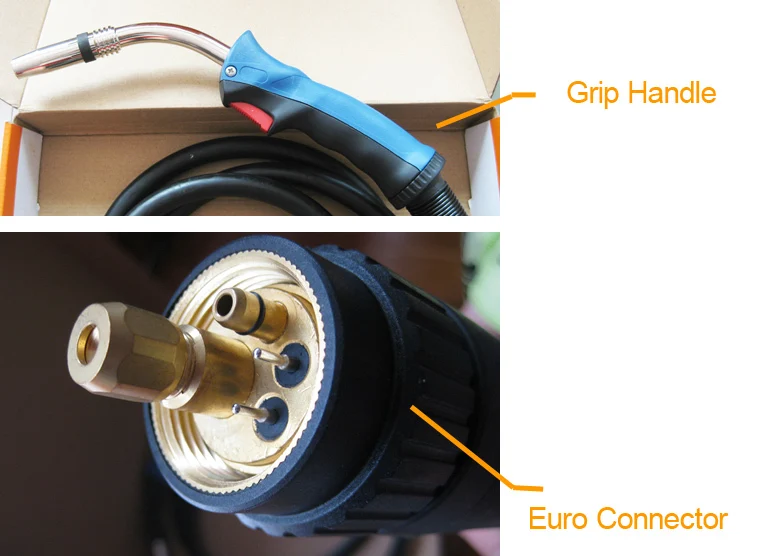

1.CE Binzel new handle type 24KD Mig welding torch View



CE Binzel new handle type 24KD Mig welding torch
.

CE Binzel new handle type 24KD Mig welding torch





2.CE Binzel new handle type 24KD Mig welding torch Technical Data:



Model

MB-24KD welding torch

-3Meters

MB-24KD welding torch

-4Meters

MB-24KD welding torch

-5Meters

Item No.012.0103012.0104012.0105
Welding TypeMIG/MAG CO2 welding torch
Rating

270A CO2

240A Mixed Gases

Duty Cycle60%
Wire Size0.8-1.2mm
Cooled TypeAir Cooled
Connector ChoosendEuro,TBI,Panasonic, MILLER ,OTC,Bernard,Tweco etc.
Handle ChoosenBinzel(old type),Binzel(grip type),TBI
Net Weight2.5KG3KG3.5KG
Gross Weight2.8KG3.3KG3.8KG
Packing Size

37*35*7CM



                                                          Send inquiry



3.CE Binzel new handle type 24KD Mig welding torch Accessories Item No.:



 OEM #Description
012.0103 MB-24KD Complete Welding Torch-3M
012.0104 MB-24KD Complete Welding Torch-4M
012.0105 MB-24KD Complete Welding Torch-5M
145.0047 Cylindrical Nozzleφ17mm
145.0080 Conical Nozzleφ12.5mm
145.0128 Tapered Nozzleφ10mm
140.0051 Contact tip M6*28*0.8,E-cu
140.0169 Contact tip M6*28*0.9,E-cu
140.0242 Contact tip M6*28*1.0,E-cu
140.0379 Contact tip M6*28*1.2,E-cu
140.0054 Contact tip M6*28*0.8,CuCrZr
140.0172 Contact tip M6*28*0.9,CuCrZr
140.0245 Contact tip M6*28*1.0,CuCrZr
140.0382 Contact tip M6*28*1.2,CuCrZr
142.0003 Gas Nozzle Holder
012.0183 Gas Diffuser
998.0090 Swan Neck
180.0076 Handle
185.0031 Switch
500.0213 Adapotor Nut
501.0003 Central ConnectorKZ-2
  Steel liner,For wireφ0.8-1.0,3.5M
  Steel liner,For wireφ0.8-1.0,4.5M
  Steel liner,For wireφ0.8-1.0,5.5M



 CE Binzel new handle type 24KD Mig welding torch

4.CE Binzel new handle type 24KD Mig welding torch Packing Size:



 .  1 piece CE Binzel new handle type 24KD Mig welding torch packed in a plastic bag

 .  then packed in a box(box size 37*35*7CM)

 .  5 pieces CE Binzel new handle type 24KD Mig welding torches packed in a carton(carton size 38*36*35CM)

 .  135 pieces CE Binzel new handle type 24KD Mig welding torch packed in a pallet(pallet size 110*110*120CM)





 CE Binzel new handle type 24KD Mig welding torch



                                                       Send inquiry



5.Family Welding Torch:



.  MB-14AK welding torch

.  MB-15AK welding torch

.  MB-25AK welding torch

.  MB-36KD welding torch

.  MB-40KD welding torch

.  MB-501D welding torch





6.Our Services:



supply the qualified products

.  samples are available

.  trial order are available

.  processing with customer's samples



7.Factory View:







CE Binzel new handle type 24KD Mig welding torch



                                                                                                                                                                 Send inquiry



8.Welding torch FAQ:



 Q1:Can I get a free samples to check the quality?

 A:Sure,we can supply the free samples which price is low than US$5.

 Q2:Will I afford the carrier charge?

 A:Yes,you will afford the express charge or your account is OK.

 Q3:Can I add my trademark on my products?

 A:Yes,we need your certificate of authorization.

Q4:Welding torch payment terms:

T/T,L/C,Western union all support

Q5:Welding torch delivery time:

sample order 2 working days, 500pcs order 10 working days.

Q6:Min order:

 1pc





9.Why to choose us:

 CE Binzel new handle type 24KD Mig welding torch

 CE Binzel new handle type 24KD Mig welding torch









Contact us if you need more details on Welding Torch. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Mig Welding Torch、Ce Binzel Welding Torch. If these products fail to match your need, please contact us and we would like to provide relevant information.
